T-Handle Quick Release Ball Lock Pin | 17-4PH Stainless Steel | MS17985 Standard | JDF

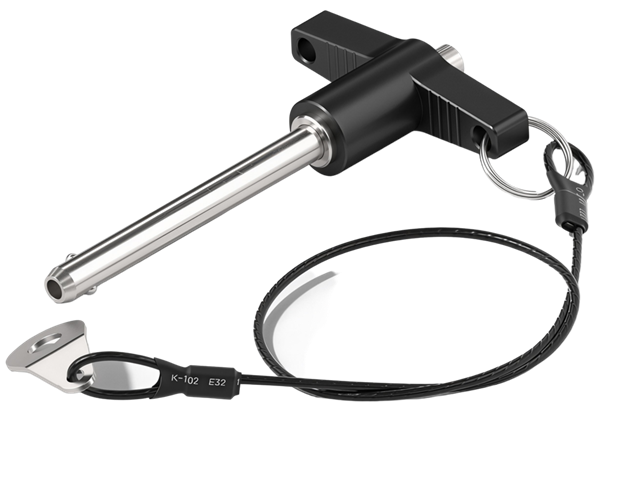

The T-Handle Quick Release Ball Lock Pin is a positive-locking, quick-release alignment pin with a precision-ground shank and a T-shaped handle. The T-handle extends perpendicular to the pin axis in both directions, creating a cross-shaped grip that provides maximum pulling leverage and allows operation from multiple approach angles. This symmetrical design is ideal for heavy-duty equipment, aerospace ground support equipment (GSE), and maintenance, repair and overhaul (MRO) applications where a firm, full-finger grip is required, including when wearing gloves. The spring-loaded balls engage close-fitting holes to lock the pin securely in place, and will not release until the button on the handle is depressed. Available in single-acting and double-acting configurations, with pin diameters from 3/16" to 5/8" (M5 to M20 in metric).

How to select the right T-Handle Ball Lock Pin:

1. Determine the pin diameter: Match the pin diameter to the mounting hole. Recommended hole tolerance is H11. The pin should slide in easily while maintaining a snug fit to prevent play. A clearance of 0.02mm–0.10mm is generally recommended.

2. Measure the grip length: The grip length is the distance from the bottom of the handle to the top of the locking ball. It must match the total thickness of the plates being joined. Standard grip lengths range from 0.50" to 6" (12.7mm to 150mm), with special lengths available up to 12" (300mm).

3. Calculate the load: Determine the shear load the pin will experience. Apply a safety factor of 2 for static loading, or 3 for dynamic/impact loading. The required shear strength = actual load × safety factor.

4. Select the material: Choose 300 series stainless steel for general applications, or 17-4PH stainless steel for higher shear strength and demanding environments.

5. Choose single-acting or double-acting: Single-acting releases with a button press; double-acting requires button press + rotation for added security against accidental release.

Example: For a 500 kg static load in double shear, with a safety factor of 2, the required shear strength is 1000 kg (approx. 2200 lbf). A 3/8" diameter 300 series pin (double shear strength 10,000 lbf) or 5/16" 17-4PH pin may be suitable depending on the actual load distribution.

Installation and Operation:

• Insert the pin into the mounting hole with the button depressed. The spring-loaded balls will retract, allowing the pin to slide through.

• Release the button. The balls will spring out and engage the groove or hole on the far side, locking the pin in place.

• The T-handle design provides a symmetrical, cross-shaped grip that allows the operator to pull from either side, making it easy to operate from multiple approach angles or when visual access is limited.

• To remove, press the button (single-acting) or press and rotate (double-acting). The balls retract and the pin can be pulled out.

• The T-handle can also be used with a lanyard to prevent loss.

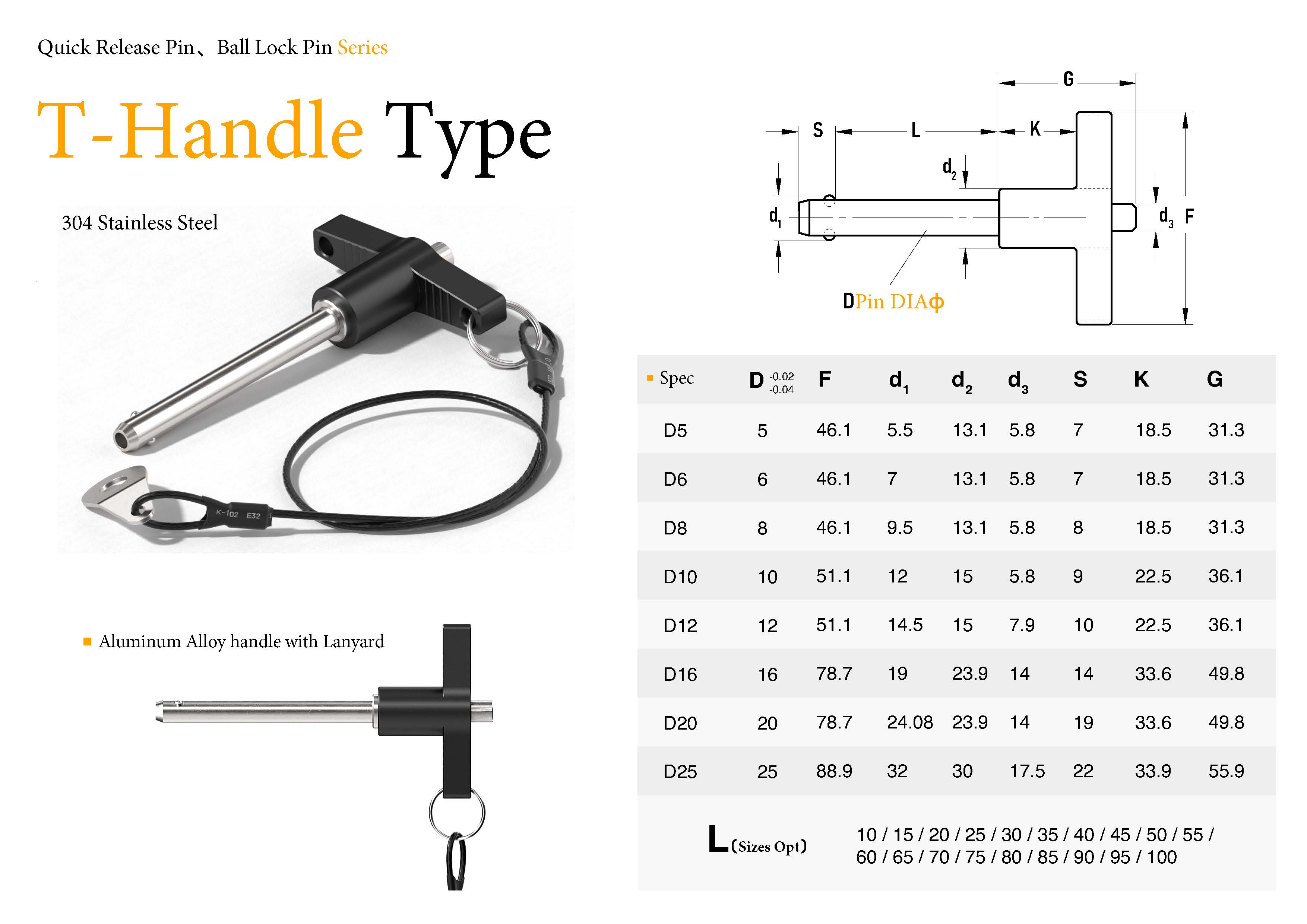

Technical Specifications Table

Typical Applications

The T-Handle Quick Release Ball Lock Pin is widely used in the following applications:

• Aerospace Ground Support Equipment (GSE): Used as towbar ball lock pins, gear pins, and steering bypass pins for pushback, conforming to MS17985/NAS1333-1343 standards

• MRO Maintenance & Repair: Quick release of aircraft access panels, engine maintenance, and component changeover

• Heavy-Duty Mold & Die Changing: Fast locking and release of molds during changeover, with T-handle providing maximum pulling leverage

• Fixtures & Positioning: Quick locating and locking of heavy workpieces on fixtures, with T-handle suitable for gloved-hand operation

• Automotive & Marine: Quick adjustment and removal in automotive suspension systems and marine equipment

• Industrial Equipment Maintenance: Quick fastening of frequently removed heavy panels, covers, and guards

FAQ

Q1: What is the difference between a T-handle, L-handle, and D-ring handle?
A: The T-handle extends perpendicular to the pin axis in both directions, creating a cross-shaped grip that provides maximum pulling leverage, suitable for heavy-duty equipment and gloved-hand operation from multiple approach angles. The L-handle extends in one direction only, with a smaller footprint for space-constrained applications. The D-ring handle is designed for fingers to pass through for operation but occupies more space.

Q2: What industry standards do T-handle ball lock pins conform to?
A: Single-acting T-handle ball lock pins conform to MS17985 / NAS1333-1343 aerospace standards. All ball lock pins are tested according to NAS 1332. These standards ensure reliability and interchangeability in aerospace ground support equipment (GSE) and MRO applications.

Q3: What is the difference between single-acting and double-acting ball lock pins?
A: Single-acting pins release with a simple button press, offering quick and convenient operation. Double-acting pins require both button press and rotation to release, providing higher security against accidental release, suitable for applications with vibration or where accidental operation must be prevented.

Q4: What is the difference between 300 series stainless steel and 17-4PH stainless steel?
A: 300 series stainless steel is austenitic, with good corrosion resistance, suitable for general load and corrosive environments. 17-4PH is a precipitation-hardening stainless steel that achieves HRC40+ hardness after heat treatment, offering higher shear strength and excellent corrosion resistance for high-load applications.

Q5: How do I calculate the load capacity of a ball lock pin?
A: Ball lock pin load capacity is measured by double shear strength and pull-out strength. Double shear strength is the fracture load of the pin under two shear planes. Pull-out strength is the force required to dislodge the ball from the hole. Select with a safety factor of 2 for static loads, or 3 for dynamic/impact loads.
