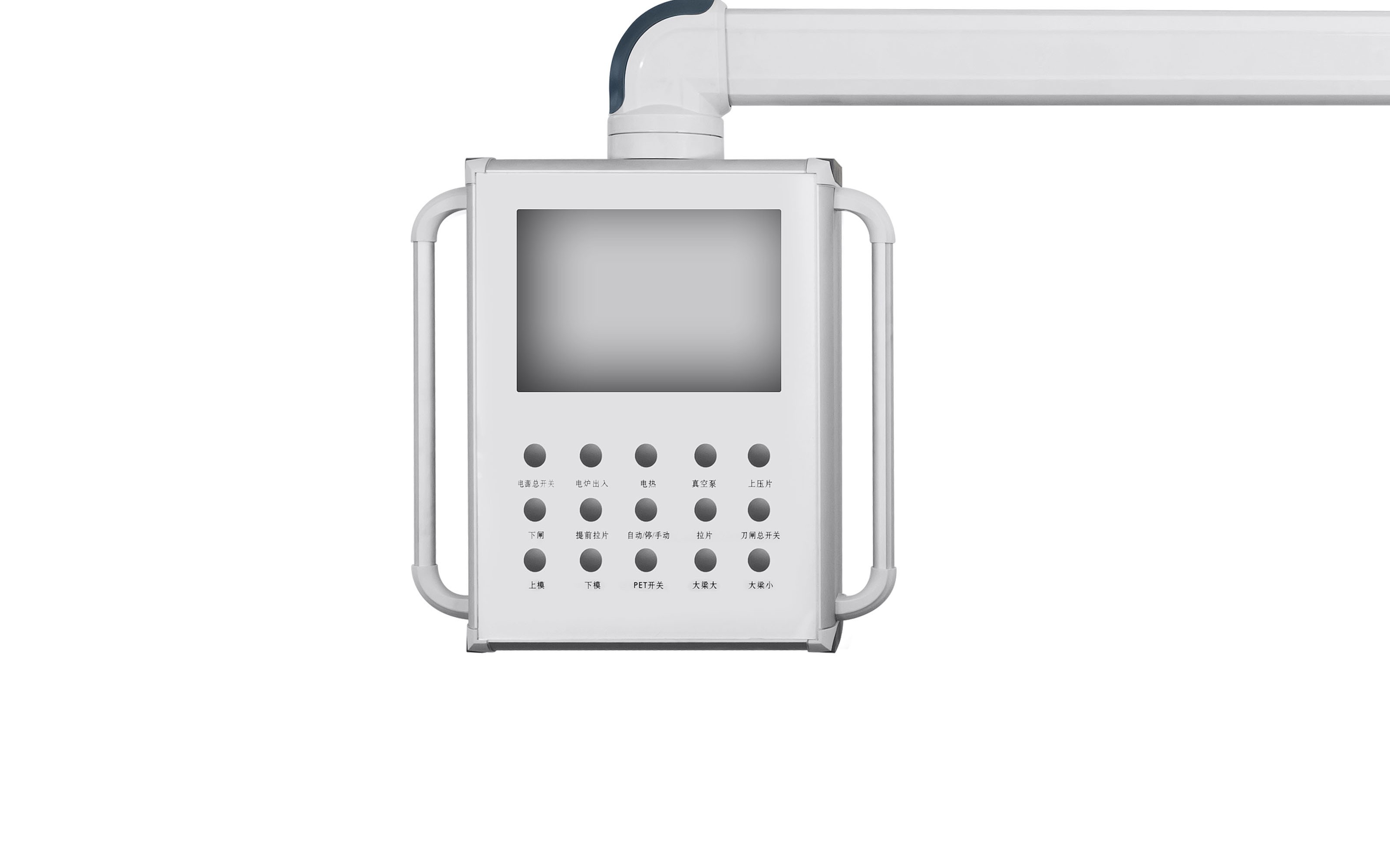

Control box depth options 100mm-150mm-200mm

Selection method:

1: Select the depth and size of the box based on the dimensions of the components inside the box.

2: Determine the effective size of the front panel of the control box based on the size of the display screen.

For instance, if the depth of the control box is 100mm, the effective width of the front panel is 400mm, and the

effective height of the front panel is 300mm, then the model of this control box is 100-400-300.

If it is necessary to process and drill holes on the front and rear panels of the control box, the processing size and

position drawings also need to be attached.

Effective installation depth: 80mm/130mm/180mm/230mm

Customized maximum size: Front panel width 700mm, front panel height 800mm

Box protection grade: IP54

Box material:

Aluminum frame and aluminum handle: Aluminum alloy 6063

Corner parts: Die-cast aluminum alloy 102

The standard color of the box body: the original color of the anodized rate

Optional components for the control box:

1: Double box structure (double box connectors)

2: Keyboard tray
