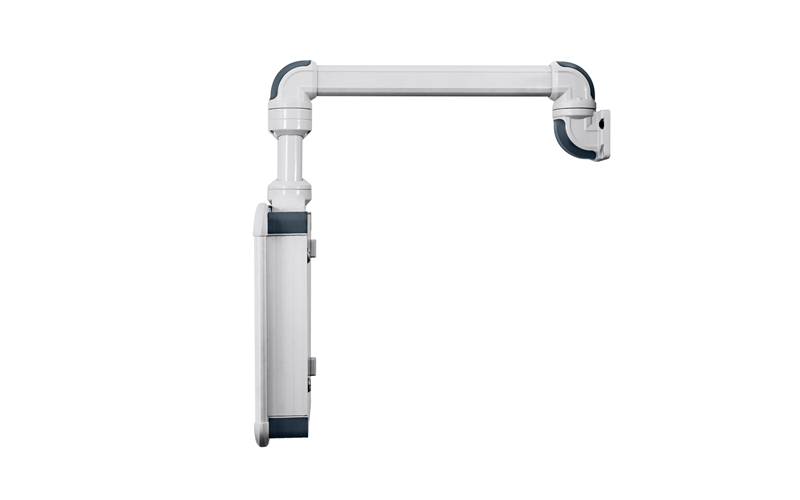

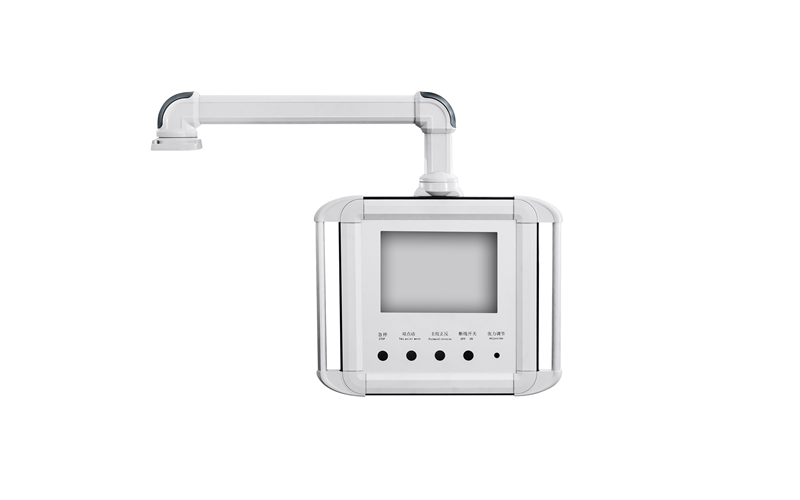

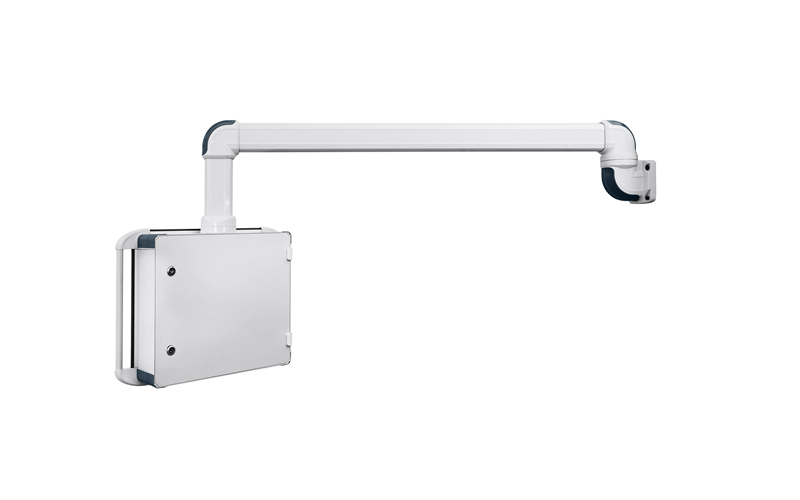

Heavy-Duty Support Arm System 75110 | High Load Control Panel Mount
Product Positioning：
The 75110 Series is a heavy-duty support arm system designed for high-load, large-sized control panels. With a rugged structure and excellent stability, it is ideal for industrial applications demanding high load capacity and long-term durability.
Load Capacity ：1500 N
Applications：
1：Large control panels and heavy-duty operator terminals
2：Long-reach, high-load applications
3：Demanding industrial environments with frequent operation
The 75110 Series is suitable for applications where load and reach requirements exceed the capabilities of the 5065 and 6095 Series. When selecting, please consider the total panel weight, arm length, and mounting method, and confirm the safe load range according to the specification table to ensure long-term stable operation.
| Feature | 5065 Series | 6095 Series | 75110 Series |
|---|---|---|---|
| Load Class | Light Load | Medium Load | High Load |
| Positioning | Compact support arm for small control panels | Medium-duty support arm for standard control panels | Heavy-duty support arm for large control panels |
| Max Load Capacity* | 500 N (≈51 kgf) | 1,000 N (≈102 kgf) | 1,500 N (≈153 kgf) |
| Typical Panel Weight* | Up to ~40 kg | ~40–60 kg | Over ~60 kg |
| Recommended Arm Length* | ≤ 1,000 mm | ≤ 1,500 mm | ≤ 2,000 mm |
| Profile Cross-Section | 50–65 | 60–95 | 75–110 |
| Standard Connection | Ø 130 mm | Ø 130 mm | Ø 130 mm |
| Material | Anodized aluminum profile | Anodized aluminum profile | Anodized aluminum profile |
| Protection Rating | IP54 | IP54 | IP54 |
| Mounting Options | Wall / base / machine | Wall / base / machine | Wall / base / machine |
| Cable Management | Integrated through hollow profile, cable/edge protection | Integrated through hollow profile, cable/edge protection | Integrated through hollow profile, cable/edge protection |
| Typical Applications | Small HMI panels, compact machine tools, space-limited workstations | Standard CNC machines, assembly lines, packaging equipment | Large CNC machines, heavy automation, multi-panel workstations |
*Load capacity and recommended panel weight depend on arm length, mounting type, and safety factor. For exact load-length curves, please refer to the specific product page or contact JDF.
Design & Selection Reference：
75110 Series Component Specifications & Dimensions：
More related options：
Heavy-Duty Support Arm System 75110 | High Load Control Panel Mount
Medium-Duty Support Arm System 6095 | Medium Load Control Panel Mount
5065 Series Drawing Downloads
Download 2D/3D CAD drawings and technical specifications for the 5065 Series Support Arm System.
FAQ
What is the maximum load capacity of the 75110 series?
The 75110 series is the heavy-load support arm system in the JDF product line. According to the JDF product manual, the support arm system provides a maximum load of 1500 N (150 kg) and is highly stable for all load levels up to 1500 N. As the largest cross-section size in the three-tier system (50-65 / 60-95 / 75-110), the 75110 series offers the highest load capacity and is suitable for large control panels, heavy HMI enclosures, and applications requiring long arm extensions. The load capacity decreases as the arm length increases.
What applications is the 75110 series suitable for?
The 75110 series is designed for heavy-load applications in industrial environments. Typical applications include: (1) Large CNC machine tools with heavy control panels and multiple HMI displays. (2) Heavy-duty automation equipment with large operator interfaces. (3) Applications requiring long arm extensions (over 1500mm) with substantial panel weight. (4) Multi-panel workstations where one support arm carries multiple control boxes or displays. (5) Process control systems with extensive electrical components installed in the enclosure. The JDF support arm system is suitable for a wide range of applications where operators need to observe and control machinery from different angles and positions, whether seated or standing.
What is the difference between the 75110 and 6095 series? How do I choose?
The primary difference is load capacity and cross-section size. The 6095 series is a medium-load support arm suitable for control panels up to approximately 40-60 kg with arm lengths up to 1500mm. The 75110 series is the heavy-load option with the largest cross-section (75-110), designed for panels exceeding 60 kg or applications requiring arm extensions beyond 1500mm with heavy loads. The JDF system allows for system change on the vertical axis — a system can be upgraded to a larger size without impairing the load capacity. As a general guideline: if the total control panel weight exceeds 60 kg or the required arm length exceeds 2000mm with a substantial load, the 75110 series should be selected.
What mounting options are available for the 75110 series?
The 75110 series supports the same three primary mounting configurations as the rest of the JDF support arm system family: (1) Wall mounting — fixed to a vertical wall surface using a wall bracket. (2) Base mounting — mounted on a horizontal surface such as a machine frame or floor pedestal. (3) Machine mounting — directly attached to the machine structure. The standard support arm connection is Ø 130mm. Please note the load reduction factors: using a base mounting reduces load capacity by approximately 25%, and adding an intermediate joint reduces it by approximately 40%. For the 75110 series, careful attention should be paid to these reduction factors given the heavy loads involved. Wall and base fasteners must not be used together with the intermediate joint.
What material is the 75110 series made of? What is the protection rating?
The 75110 series is constructed from high-quality aluminum profiles, consistent with the entire JDF support arm system. The system features three combinable cross-sections with an elegant design full of functionality, providing a high level of stability suitable for all load levels up to 1800 N. The standard protection rating is IP54. The system includes integrated cable/edge protection, automatic and continuous potential equalisation of every support arm component, and sliding contacts in the rotating elements to ensure reliable electrical contact along the entire system.
How does the 75110 series handle cable management?
The 75110 series features the same comprehensive cable management system as the entire JDF support arm family. Key features include: (1) Safe cable management with integrated cable/edge protection. (2) Continuous automatic potential equalisation protects the operator if a cable should break. (3) The rotating elements are fitted with sliding contacts for reliable electrical contact. (4) Continuous cable protection through rounded edges and special cable protection elements prevents kinking or chafing. (5) The open support section allows for easy upgrade and servicing access, with snap-on cable protection elements. (6) The system supports easy one-person assembly, and support arm sections can be easily cut to the required length. (7) Mounting without thread-tapping is possible due to self-tapping screws.
What is the operating temperature range of the 75110 series?
The 75110 series is designed for standard industrial environments. As the heavy-load option in the JDF support arm system family, it operates within a temperature range suitable for typical indoor industrial applications including heavy machinery shops, large-scale assembly lines, and process automation environments. For applications requiring operation outside the standard range, or for extreme temperature or washdown environments, please contact JDF for custom solutions.
