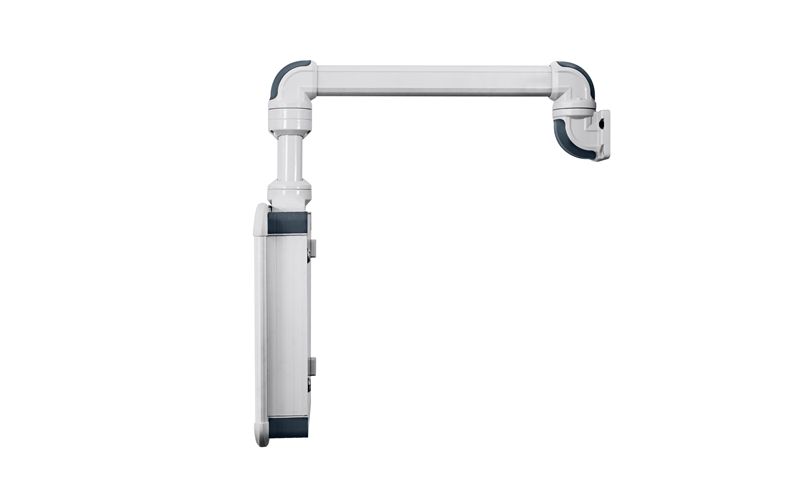

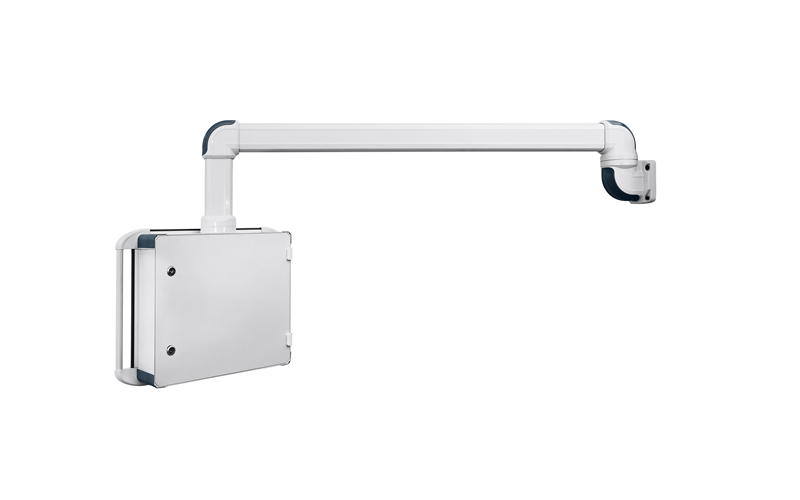

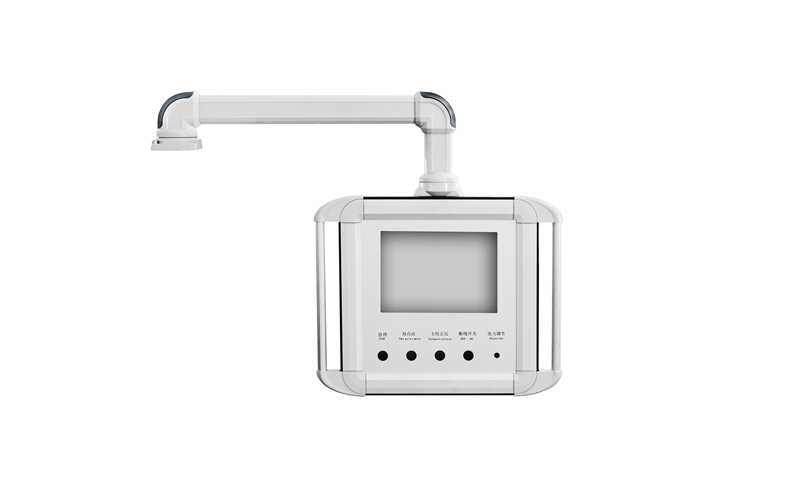

Medium-Duty Support Arm System 6095 | Medium Load Control Panel Mount
Product Positioning：
The 6095 Series is a medium-duty support arm system that balances structural strength with installation flexibility. It is suitable for medium-load control panels and operator stations. Compared with the 5065 Series, it features a more robust structure capable of supporting longer arms and larger panel sizes.
Load Capacity ：1000 N
Applications：
1：Medium-sized control panels and operator stations
2：Applications requiring longer arm reach
3：Industrial environments with higher stability requirements
When selecting the 6095 Series, please note that the load capacity decreases as the arm length (B) increases. For applications requiring a longer reach (up to 2500 mm), ensure the total weight of the control panel and its components does not exceed the corresponding load limit shown in the specification table. If your required load exceeds these values, please consider our heavier-duty series.
| Feature | 5065 Series | 6095 Series | 75110 Series |
|---|---|---|---|
| Load Class | Light Load | Medium Load | High Load |
| Positioning | Compact support arm for small control panels | Medium-duty support arm for standard control panels | Heavy-duty support arm for large control panels |
| Max Load Capacity* | 500 N (≈51 kgf) | 1,000 N (≈102 kgf) | 1,500 N (≈153 kgf) |
| Typical Panel Weight* | Up to ~40 kg | ~40–60 kg | Over ~60 kg |
| Recommended Arm Length* | ≤ 1,000 mm | ≤ 1,500 mm | ≤ 2,000 mm |
| Profile Cross-Section | 50–65 | 60–95 | 75–110 |
| Standard Connection | Ø 130 mm | Ø 130 mm | Ø 130 mm |
| Material | Anodized aluminum profile | Anodized aluminum profile | Anodized aluminum profile |
| Protection Rating | IP54 | IP54 | IP54 |
| Mounting Options | Wall / base / machine | Wall / base / machine | Wall / base / machine |
| Cable Management | Integrated through hollow profile, cable/edge protection | Integrated through hollow profile, cable/edge protection | Integrated through hollow profile, cable/edge protection |
| Typical Applications | Small HMI panels, compact machine tools, space-limited workstations | Standard CNC machines, assembly lines, packaging equipment | Large CNC machines, heavy automation, multi-panel workstations |
*Load capacity and recommended panel weight depend on arm length, mounting type, and safety factor. For exact load-length curves, please refer to the specific product page or contact JDF.
Design & Selection Reference：
6095 Series Component Specifications & Dimensions：
More related options：
Heavy-Duty Support Arm System 75110 | High Load Control Panel Mount
Medium-Duty Support Arm System 6095 | Medium Load Control Panel Mount
6095 Series Drawing Downloads
Download 2D/3D CAD drawings and technical specifications for the 5065 Series Support Arm System.
FAQ
What is the maximum load capacity of the 6095 series?
The 6095 series is designed for medium-load applications. According to the JDF product manual, the support arm system covers load levels up to 1500 N, and the maximum load for the overall system is 1500 N (150 kg). The 6095 series sits in the middle of the three available cross-section sizes (50-65 / 60-95 / 75-110), offering higher load capacity than the 5065 light-load series while maintaining a moderate profile size suitable for most industrial control panel applications. As with all support arm systems, the allowable load decreases as the arm length increases.
How do I select the correct 6095 configuration based on my control panel weight?
Follow these steps: (1) Determine the total weight of the control panel including all installed components (HMI, buttons, wiring, etc.). (2) Estimate the maximum arm length required. (3) Determine the mounting type: wall, base, or machine mounting. (4) Apply load reduction factors: using a base mounting reduces load capacity by approximately 25%, and adding an intermediate joint reduces it by approximately 40%. (5) Apply a safety factor of 2 for static applications or 3 for dynamic or high-vibration environments. (6) Select the 6095 configuration whose adjusted load capacity exceeds the required value. If the required load exceeds the 6095 capability, consider the 75110 heavy-load series.
What is the difference between the 6095 and 5065 series? How do I choose?
The primary difference is load capacity and cross-section size. The 5065 series is a compact light-load support arm designed for small control panels and space-constrained installations. The 6095 series is a medium-load support arm with a larger profile cross-section and higher load capacity, suitable for larger control panels and longer arm extensions. As a general guideline: if the total control panel weight (including components) is under 40 kg and the arm length is under 1000mm, the 5065 series is typically suitable. If the panel weight exceeds 40 kg or the required arm length exceeds 1500mm, the 6095 series is recommended. For heavier loads, the 75110 series should be considered.
What mounting options are available for the 6095 series?
The 6095 series supports three primary mounting configurations: (1) Wall mounting — fixed to a vertical wall surface using a wall bracket. (2) Base mounting — mounted on a horizontal surface such as a machine frame or floor pedestal. (3) Machine mounting — directly attached to the machine structure. The standard support arm connection is Ø 130mm, consistent with the JDF modular system. Industry practice for HMI support arm systems includes wall, floor, and machine mounting options. Note that using a base mounting reduces load capacity by approximately 25% compared to wall mounting. Please also note that wall and base fasteners must not be used together with the intermediate joint.
What material is the 6095 series made of? What is the protection rating?
The 6095 series is constructed from high-quality aluminum profiles. The JDF support arm system features three combinable cross-sections with an elegant design that is full of functionality. The system provides a high level of stability and is suitable for all load levels up to 1500 N. The standard protection rating for the support arm system is IP54, which protects against dust ingress and water splashes from any direction. The system also features integrated cable/edge protection for safe cable management.
How does the 6095 series handle cable management?
The 6095 series features integrated cable management through the hollow aluminum profile. Key features include: (1) Safe cable management with integrated cable/edge protection. (2) Continuous automatic potential equalisation of every support arm component, which protects the operator if a cable should break. (3) The rotating elements are fitted with sliding contacts to ensure reliable electrical contact along the entire system. (4) Continuous cable protection through rounded edges and special cable protection elements prevents cables from being kinked or chafed. (5) The open support section allows for easy upgrade and servicing access, with snap-on cable protection elements for open support arm sections. The system also supports easy one-person assembly.
What is the operating temperature range of the 6095 series?
The 6095 series is designed for standard industrial environments. As part of the JDF support arm system family, it operates within a temperature range suitable for typical indoor industrial applications including machine shops, assembly lines, packaging facilities, and process automation environments. For applications requiring operation outside the standard range, or for clean room or washdown environments, please contact JDF for custom solutions.
